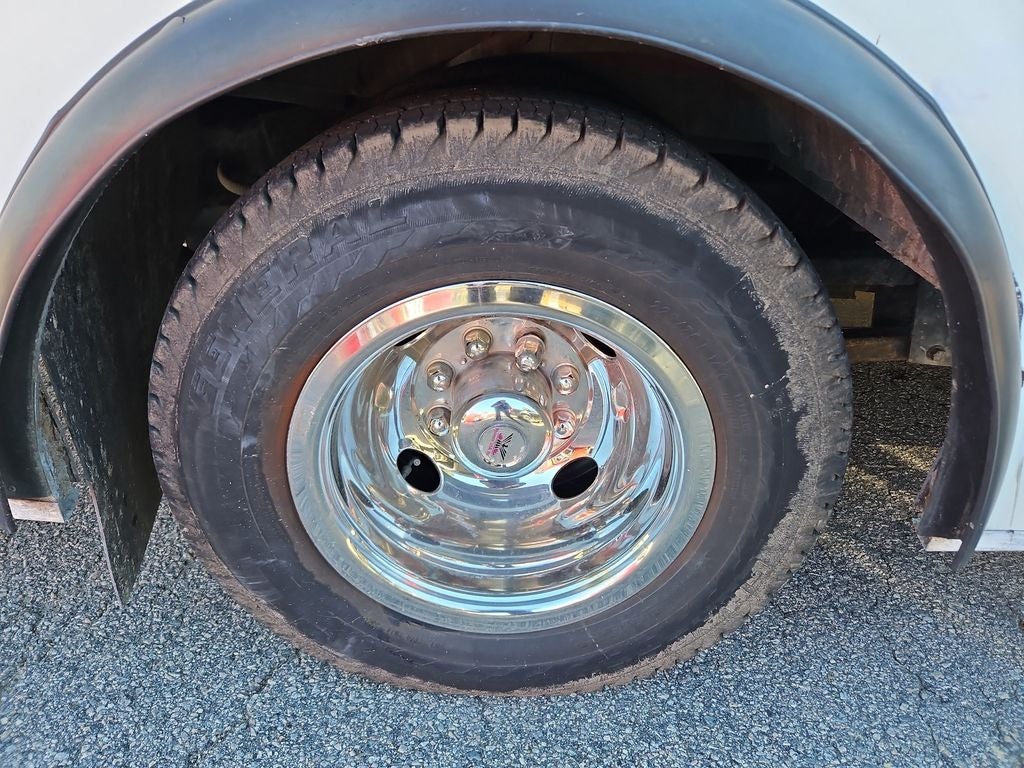

• Wheels, 6 - 16" x 6.5" (40.6 cm x 16.5 cm) 8-lug painted steel, heavy duty (Only available with (R05) dual rear wheel configuration)
• Tires, front LT225/75R16E all-season, blackwall (Requires (R05) dual rear wheel configuration.) Jack and spare tire equipment bracket are not included.
• Tires, rear LT225/75R16E all-season, blackwall (Requires (R05) dual rear wheel configuration. Jack and spare tire equipment bracket are not included.)
• Wheel configuration, rear, dual
• Bumper, front painted Black with step-pad (Deleted when (ZR7) Appearance Package or (YF1) RV Package is ordered.)
• Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.)
• Flasher, heavy duty light emitting diode (LED), formerly known as SEO (8H9)
• Mirrors, outside delete (Not available with (5Q7) Upfitter option Blank Sail Panel Delete when ordered with (YF2) Ambulance Package.)
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front

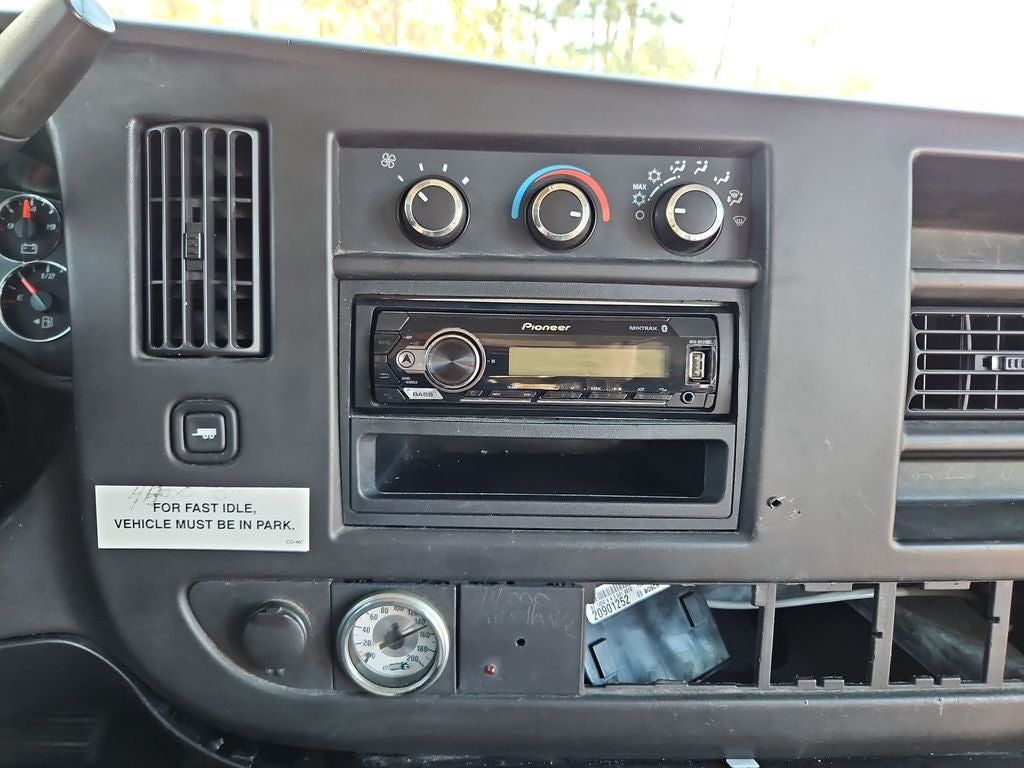

• Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers (Not available with (UM7) AM/FM stereo, (U1C) AM/FM stereo with CD player, (US8) AM/FM stereo with CD/MP3 player, (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation or (UL5) radio delete.)

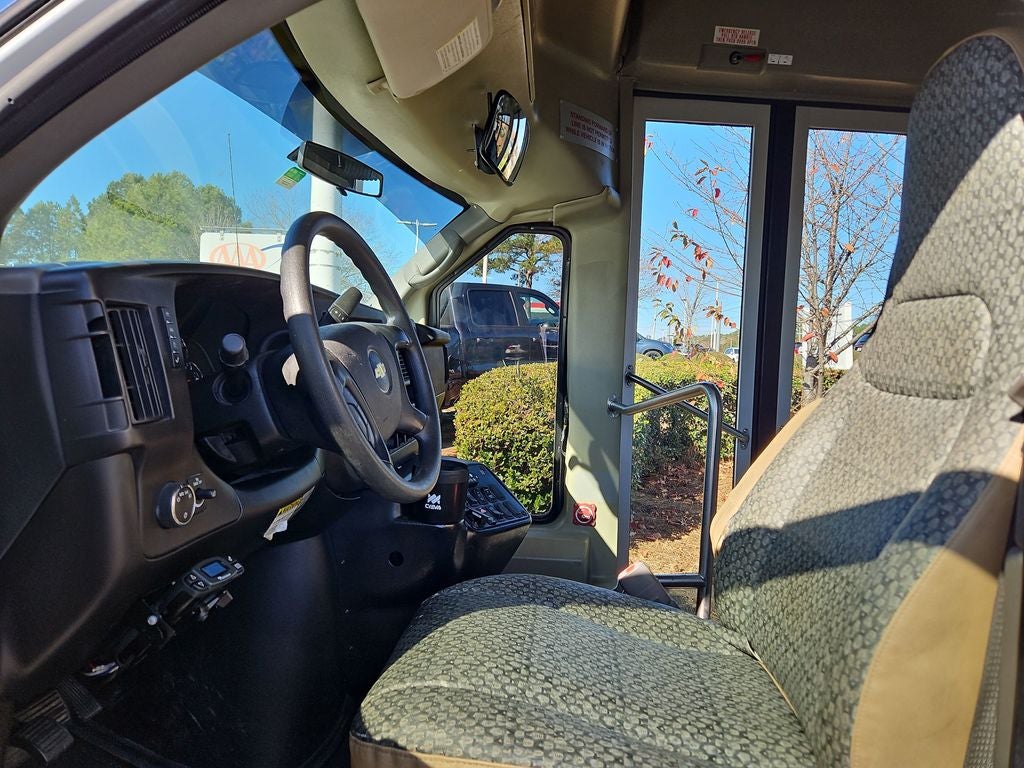

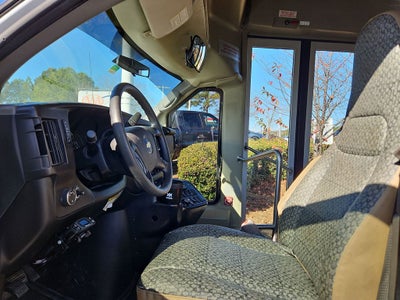

• Seating arrangement, driver and front passenger highback bucket includes head restraints and vinyl or cloth trim
• Air conditioning, single-zone manual
• Seats, front bucket with vinyl trim and outboard head restraints includes inboard armrests (Requires (**W) trim. Not available with SEO (ZP0) delete driver and passenger seats.)
• Floor covering, Black rubberized-vinyl front
• Warning tones, headlamp on and key-in-ignition
• Oil life monitor
• Theft-deterrent system, vehicle, PASS-Key III
• Heater and defogger with front and side window defoggers
• Defogger, side windows
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, cloth, padded
• Assist handle, front passenger
• Lighting, interior with dome light and door handle-activated switches

• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Not available with (ZX1) driver only high-back bucket seat. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bag deactivation switch, frontal, passenger-side (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)

ENGINE, VORTEC 6.0L V8

• (324 hp [241.6 kW] @ 4700 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (STD)

• Preferred Equipment Group 2WT
• 4.10 Rear Axle Ratio
• 16" x 6.5" 8-Lug Painted Steel Wheels
• Painted White Wheel Finish
• Dual Rear Wheel Configuration
• Reclining High-Back Bucket Seats
• Reclining High-Back Bucket Seats w/Inboard Armrests
• Vinyl Seat Trim

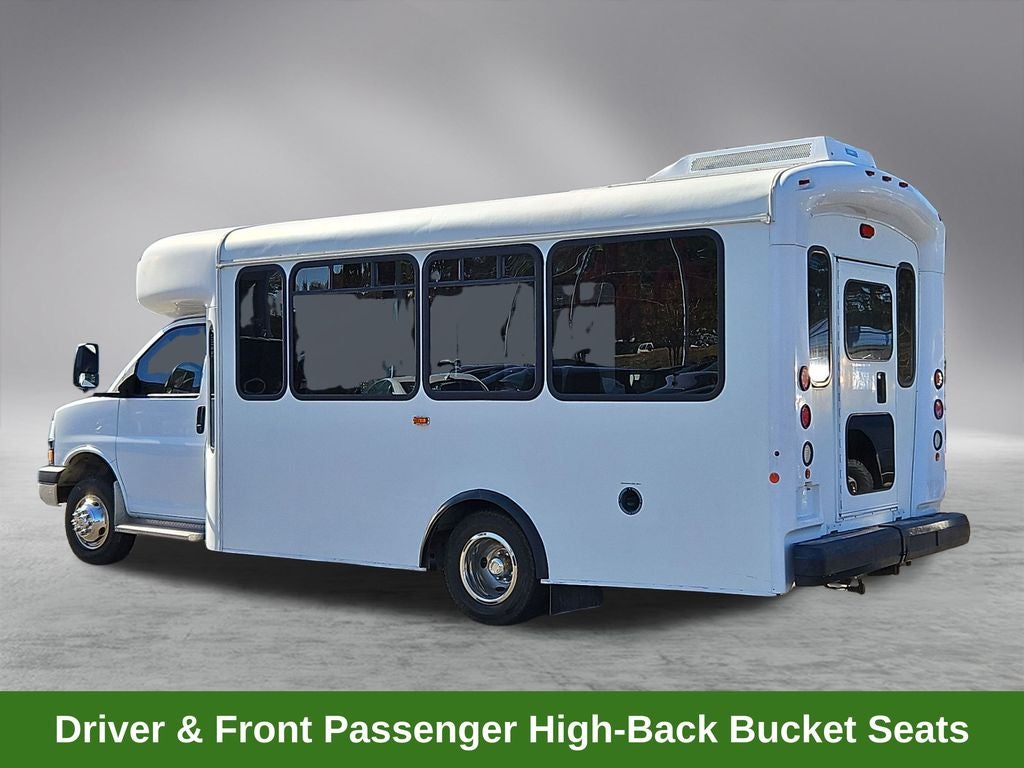

• Driver & Front Passenger High-Back Bucket Seats
• Driver-Only Adjustable High-Back Bucket Seat
• Driver-Side Only Frontal Airbag
• Convenience Package
• Manual Day/Night Inside Rear-View Mirror
• Front Chrome Bumper w/Step-Pad
• Chrome Appearance Package
• Stop/Turn Signal Circuits
• High & Low Dual-Note Horn
• Shuttle Bus Package
• 770 CCA Heavy-Duty Maintenance-Free Battery
• Body Soft-Mount Donut & Bolt
• Fuel Tank Capacity Approx. 57 Gallons (215.7L)
• HVAC System Auxiliary Rear Heater Provisions
• Brass Tire Valve Stems

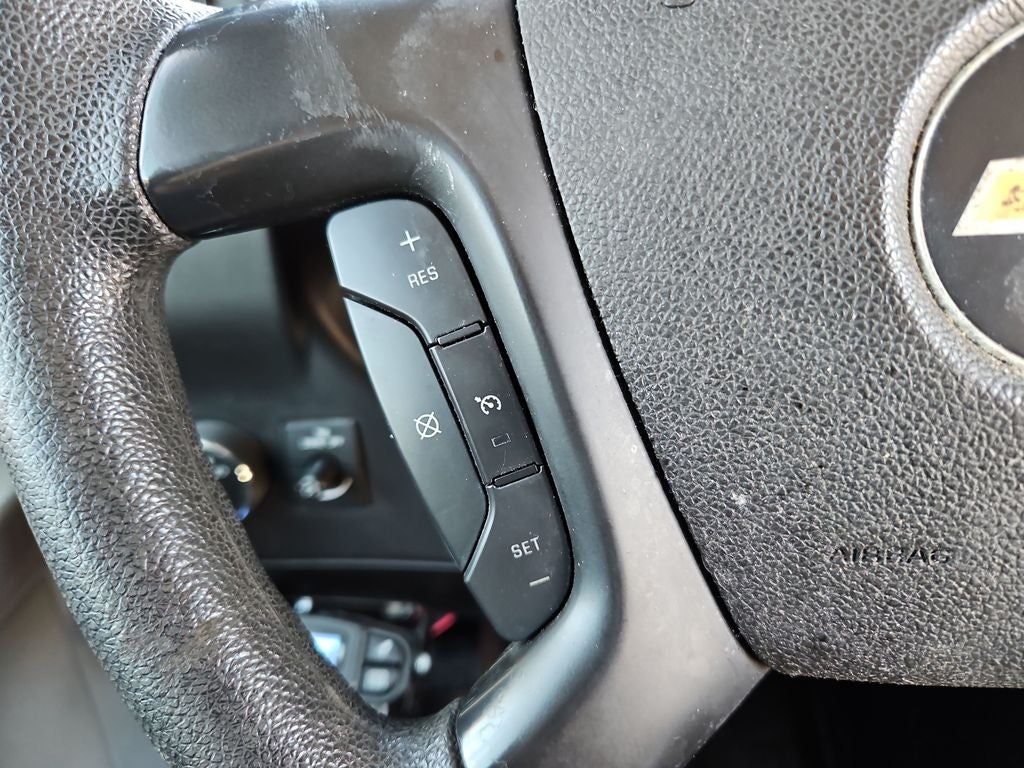

• Cruise Control
• Dual Composite Halogen Headlamps

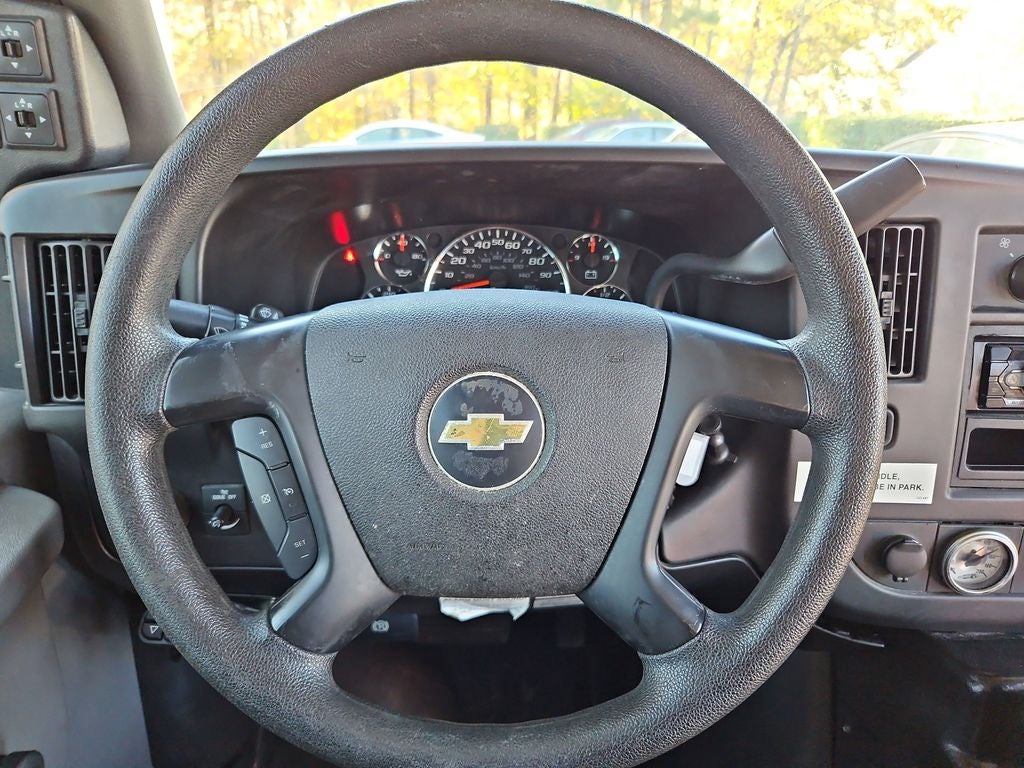

• Tilt Steering Wheel
• Chrome Grille
• 4-Wheel Disc Brakes
• Driver's Seat Mounted Armrest
• Dual rear wheels
• 2 Speakers
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Power steering
• Passenger seat mounted armrest
• Passenger door bin
• Passenger cancellable airbag

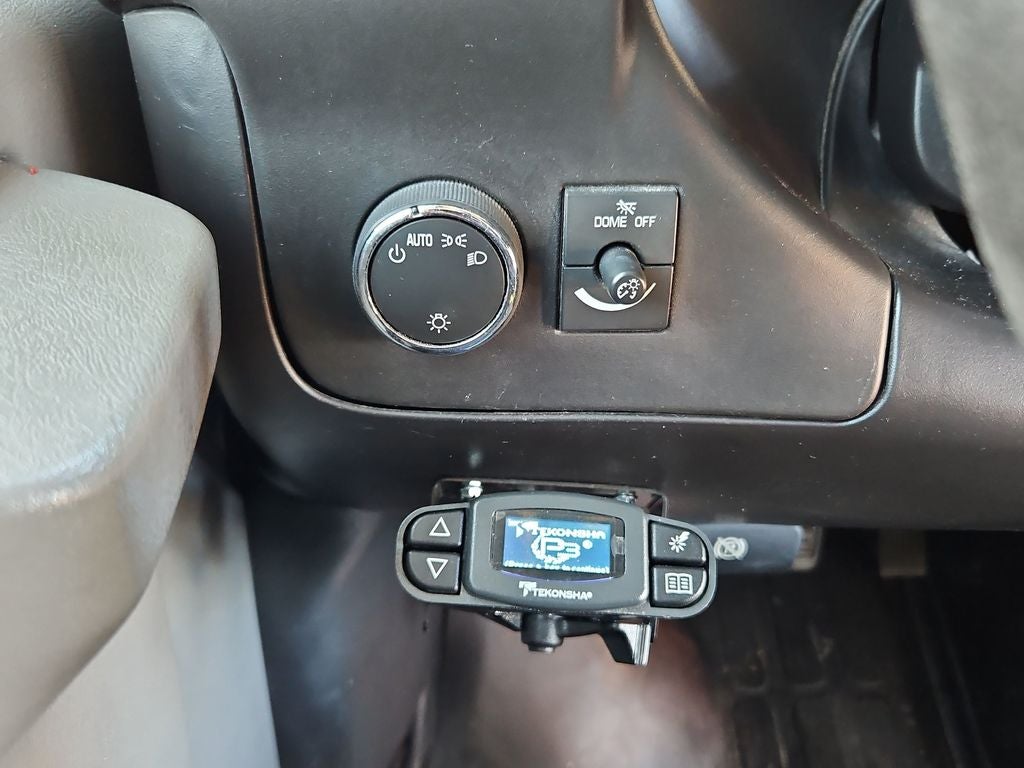

• Fully automatic headlights
• Front wheel independent suspension
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• Delay-off headlights

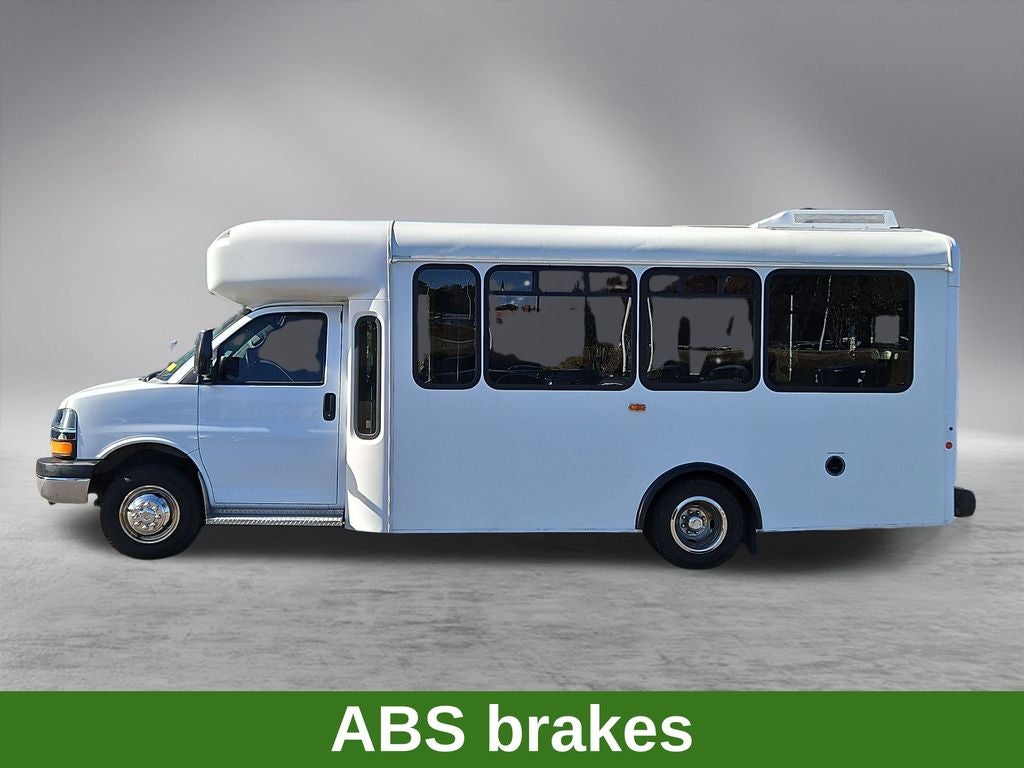

• ABS brakes
• Voltmeter
• Tachometer
• Front Bucket Seats
• Air Conditioning

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4600
• Gross Axle Wt Rating - Rear (lbs): 9600
• Curb Weight - Front (lbs): 3051
• Curb Weight - Rear (lbs): 1971
• Gross Vehicle Weight Rating Cap (lbs): 14200
• Suspension
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): 4600
• Spring Capacity - Rear (lbs): 9600
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4600
• Axle Capacity - Rear (lbs): 9600
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.58 x 1.6
• Tires
• Front Tire Order Code: XHF
• Rear Tire Order Code: YHF

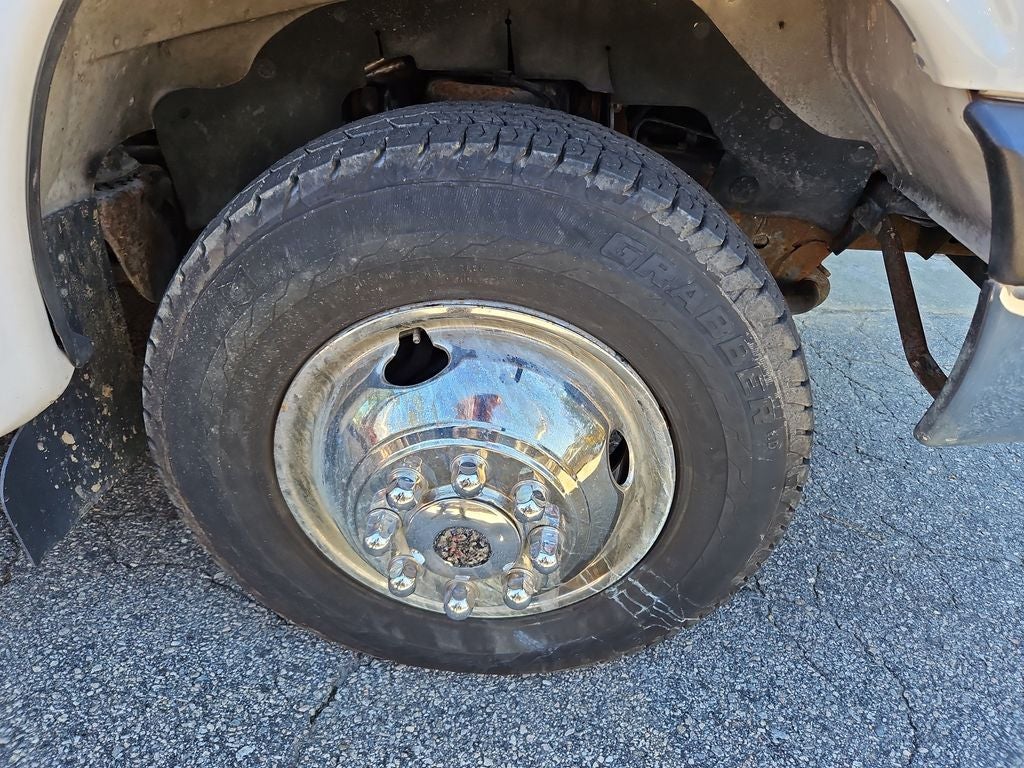

• Front Tire Size: LT225/75R16E
• Rear Tire Size: LT225/75R16E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 54.5
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33.0
• Fuel Tank Location: Mid-frame
• Exterior Dimensions
• Wheelbase (in): 159.00
• Length, Overall w/o rear bumper (in): 266.70
• Width, Max w/o mirrors (in): 79.10
• Height, Overall (in): 82.90
• Overhang, Front (in): 39.70
• Front Bumper to Back of Cab (in): 98.70
• Cab to Axle (in): 100.00
• Cab to End of Frame (in): 168.50
• Ground to Top of Frame (in): 23.31
• Frame Width, Rear (in): 34.80
• Ground Clearance, Front (in): 7.60
• Ground Clearance, Rear (in): 7.00
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 40.20
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 68.80
• Front Hip Room (in): 65.50
• Summary

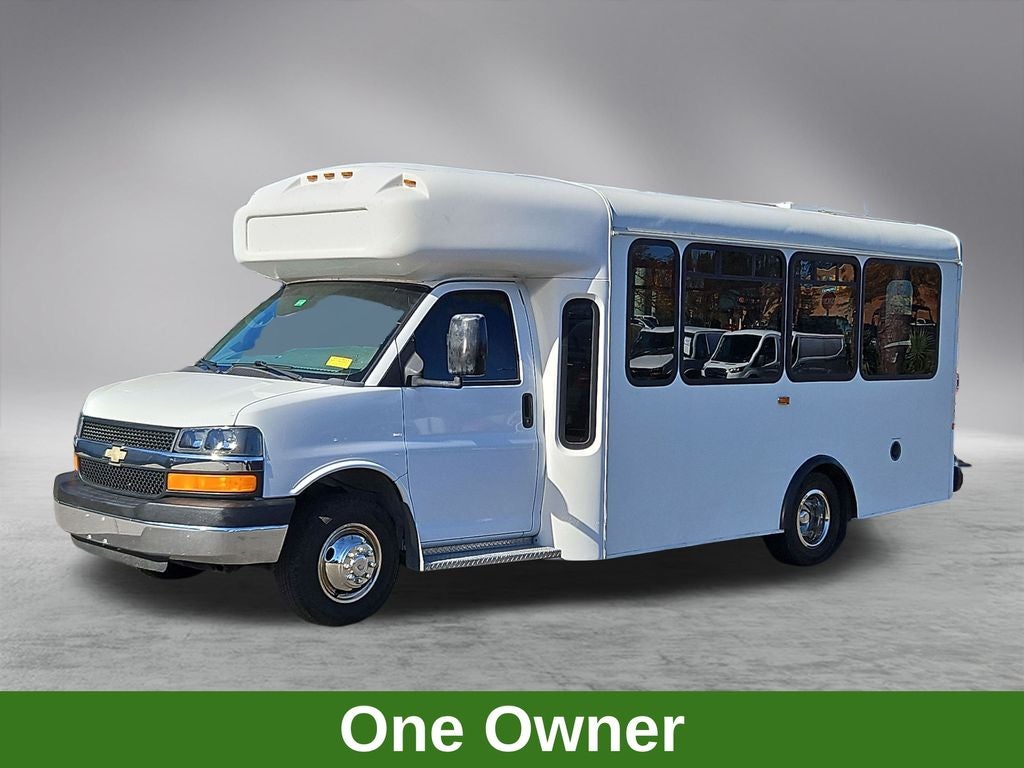

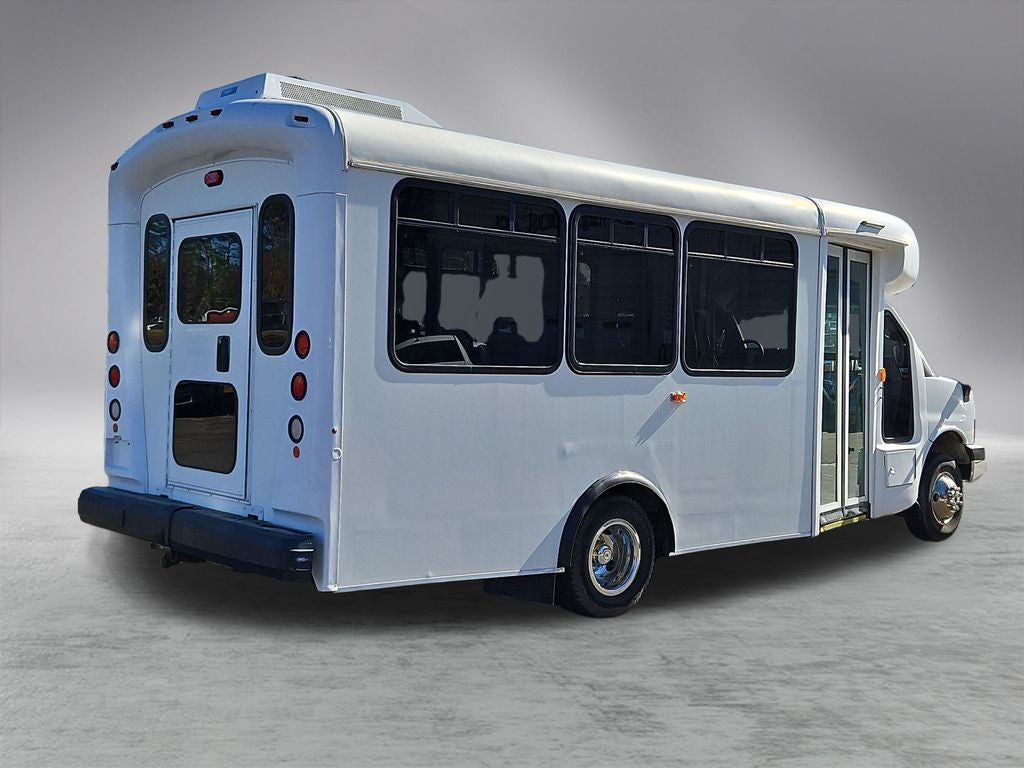

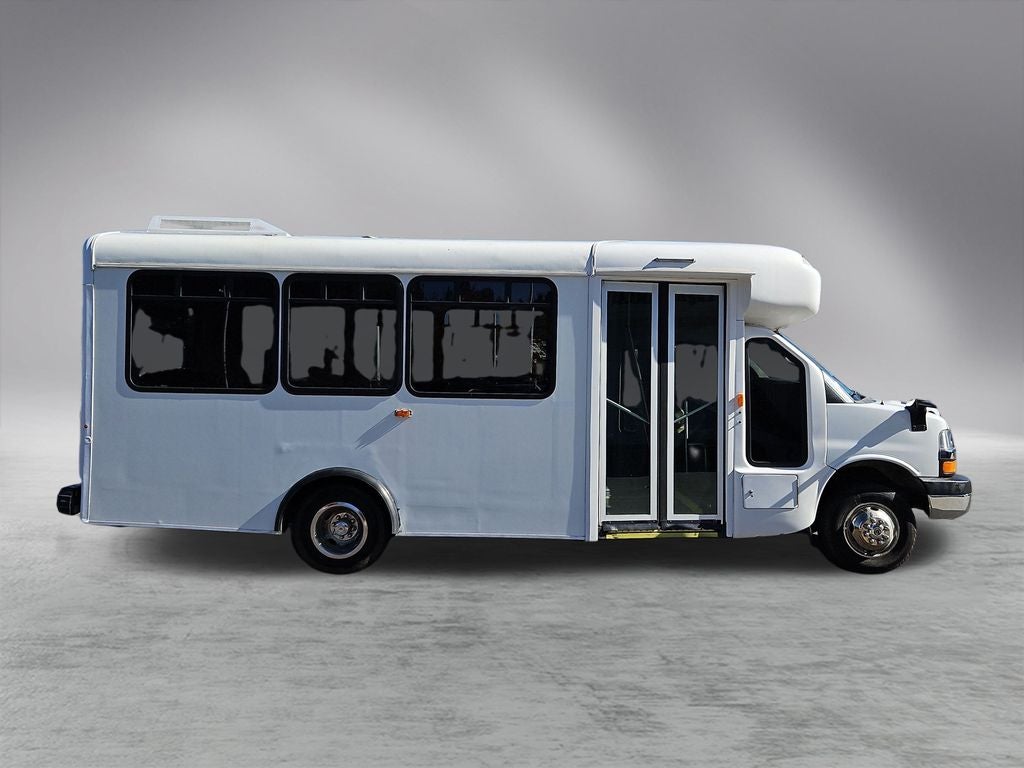

• Vehicle Name: Chevrolet Express Commercial Cutaway
• Body Style: 159.0" WB
• Body Code: ZW9
